HONDA EU7000IS REMOTE START PAGES
NEW CLICK HERE FOR 2021 VERSION MicroAir Easy Start 364 - Air Conditioner Soft Start - Run AC with 1 Generator THESE WORK!!
CLICK HERE TO GO BACK TO THE EU7000IS PARTS PAGE
LETS START WITH HARD WIRED REMOTE START FIRST.
THIS IS THE BASIC OEM HONDA UNIT:
A ROCKER FOR THE POWER ON , PUSH BUTTON FOR THE CALL TO CRANK, AND A PILOT OR ENGINE RUNNING LAMP INDICATOR.

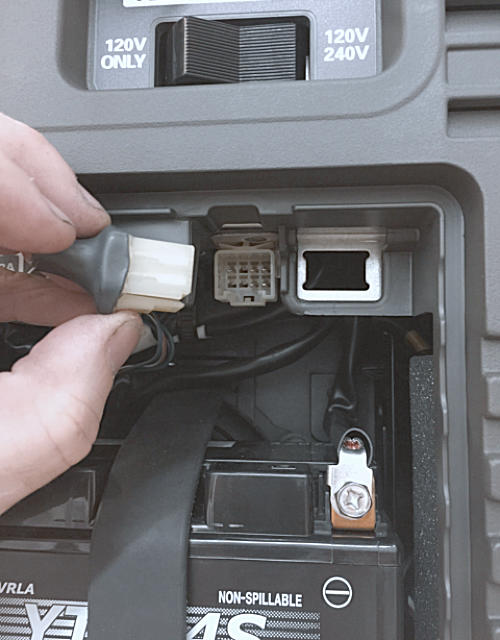

BELOW IS WHERE IT CONNECTS UNDER THE FRONT PANEL BATTERY DOOR ON THE GENERATOR FOR BOTH THE BLUE TOOTH OR THE HARD WIRED REMOTE. REMOVE THE OEM SHORTING PLUG CAREFULLY AND SAVE IT TO REVERT BACK TO OEM! THE GENERATOR WILL NOT RUN AS A STAND ALONE GENERATOR WITH OUT THIS!
Honda EU7000IS HARD WIRED start stop Remote

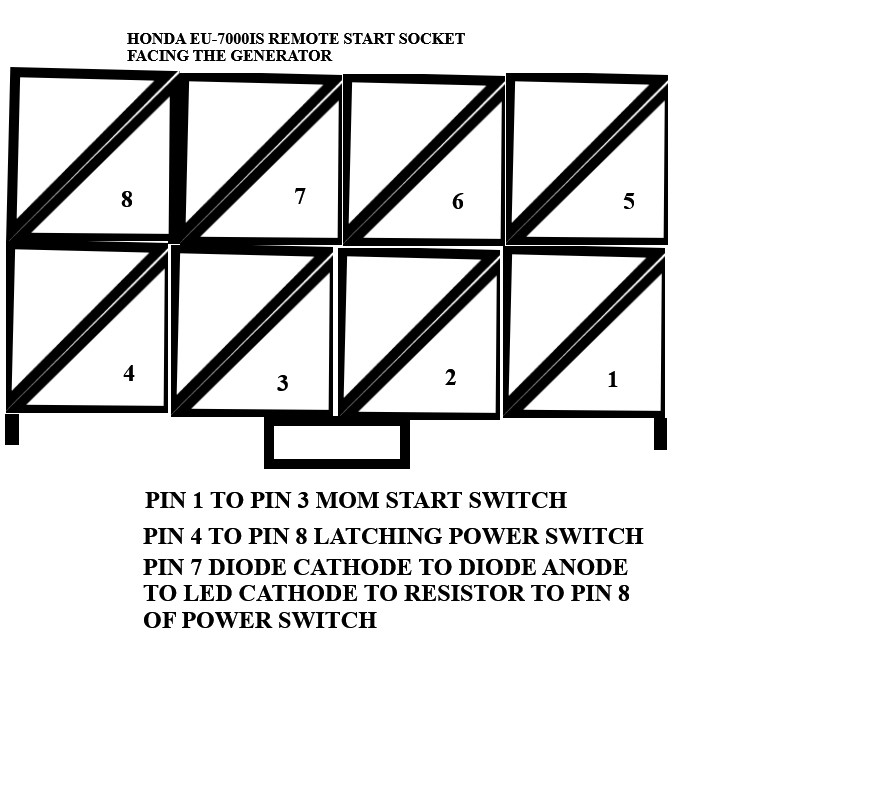

ok here is a couple of hand drawings for the socket pin out on the remote start socket
and now for the remote wire directions as text
note: pins 2, 5, 6 are no connection on the gen side
upper left color is always the main wire color.
the lower right color is the tracer or stripe over the main color.
N/C = no connection
i will work on a diagram and parts list for the parts.
these retail for $500.00 for a 100 foot unit! wow!
you should be able to make one for less than 100 bucks usd!
yea the plug is expensive on these.
then a basic project box
good high strand count 5 conductor copper 14 gauge wire at 75 feet
and use high strand count 5 conductor copper12 guauge high strand count above 75 feet long.
a push button latching spst switch with led (green)
and a momentary spst push button switch labeled start / stop
pretty basic stuff for some one who makes project items!
NOW FOR THE PARTS TO BUILD THIS PROJECT:

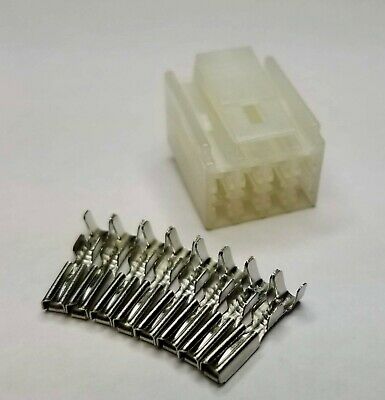

CLICK HERE FOR Honda EU7000is remote start control connector kit
CLICK HERE FOR GM Delphi Weather pack Crimper Tool
MAYBE FOR THE CONTROL WIRE USE THIS ALL COPPER HD JACKET STUFF:
CLICK HERE FOR Deka East Penn (04906) 14/6 x 100' Trailer Cable
MAYBE FOR THE HD CABLE
MAYBE FOR THE BOX
MAYBE FOR THE LATCHING POWER SWITCH AS WELL AS POWER ON READY TO START INDICATOR LAMP.
USE THE GREEN LIGHT FROM THE START SWITCH BELOW TO INDICATE POWER ON

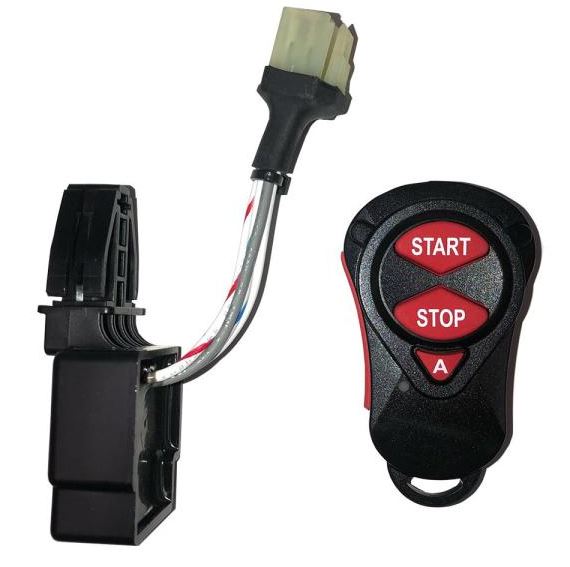

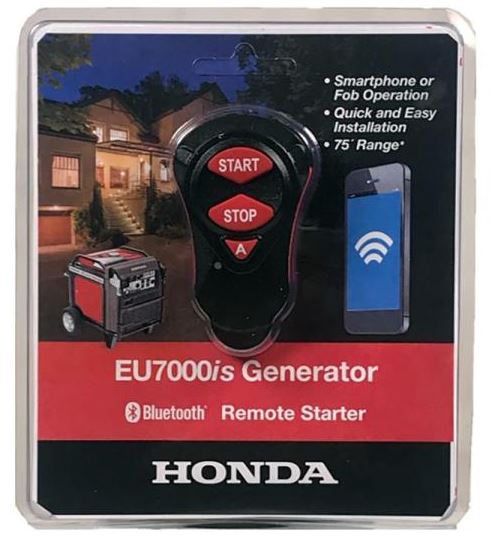

NOW FOR THE BLUE TOOTH REMOTE STARTER

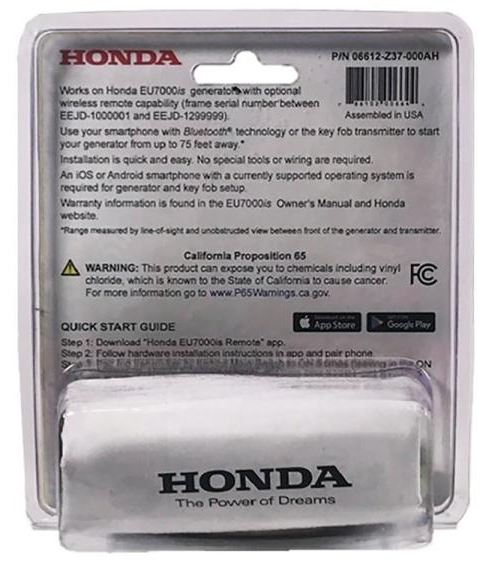

When you need to start your Honda EU7000is generator from up to 75 ft. away add the remote starter kit. This kit easily can be added to the Honda EU7000is with the serial number range EEJD-1000001 to EEJD-1299999. So when your power goes out or you want to easily start your generator, use the remote start.
For use with a smartphone with Bluetooth technology or the key fob transmitter to start your generator from up to 75 ft. away (Range is by line of sight and unobstructed view between front of the generator and transmitter may not work if the generator is in a shed or enclosure)
Installation is quick and easy
No special tools or wiring required
Quick start guide on back of package
Smartphone App in Google Play or Apple App Store
CLICK HERE FOR the oem honda blue tooth unit installation instructions
OK ON TO THE IMPORTANT TECH NOTES!
FIRST THINGS FIRST, REMOVE THE FACTORY INSTALLED COIN BATTERIES FROM THE REMOTES AND REPLACE THEM WITH THE BATTERIES BELOW!
THE BATTERIES MUST CHECK AT 3.1 VOLTS OR MORE FOR THE REMOTE TO WORK CORRECTLY!
CLICK HERE FOR Energizer CR2032 Batteries, 3V Lithium Coin Cell 2032 Watch Battery, (6 Count)
NEXT TECH TIP THE GENERATOR BATTERY NEEDS TO BE AT 100% CHARGED!
STARTING OR STOPPING THE GEN MORE THAN 2 TIMES WILL LEAVE THE BATTERY TOO LOW TO CRANK!
NEXT CLEAR OUT AND ZERO OUT THE REMOTE AS WELL AS THE DONGLE MEMORY BEFORE YOU TRY TO PAIR THE UNITS!
THIS IS AN IMPORTANT STEP AS A FIRST THINGS FIRST!
NEXT TIP YOU MUST USE A SMART PHONE OR IPAD FOR THE SETUP!
WE USE AN NEW 2020 IPAD PRO HERE WITH ALL THE LATEST UPDATES IN SOFTWARE
VERY IMPORTANT FOR THE BLUE TOOTH SETUP TO WORK RIGHT!

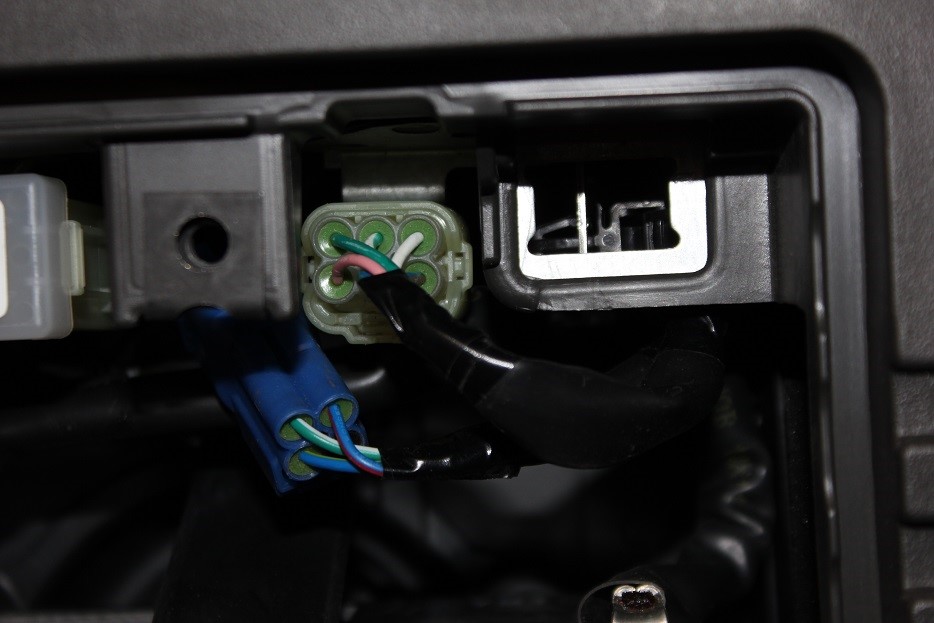

OK THE NEW 2021 VERSION OF THE EU7000ISNAG WITH THE OEM BLUE TOOTH HAS A DIFFERENT PLUG FOR THE HARD WIRED REMOTE START!
IF YOU ARE BUILDING FROM SCRATCH YOU CAN USE THE PARTS FROM ABOVE EXCEPT THE 6 PIN PLUG THAT IS LISTED WAY BELOW
AND
AND
AND

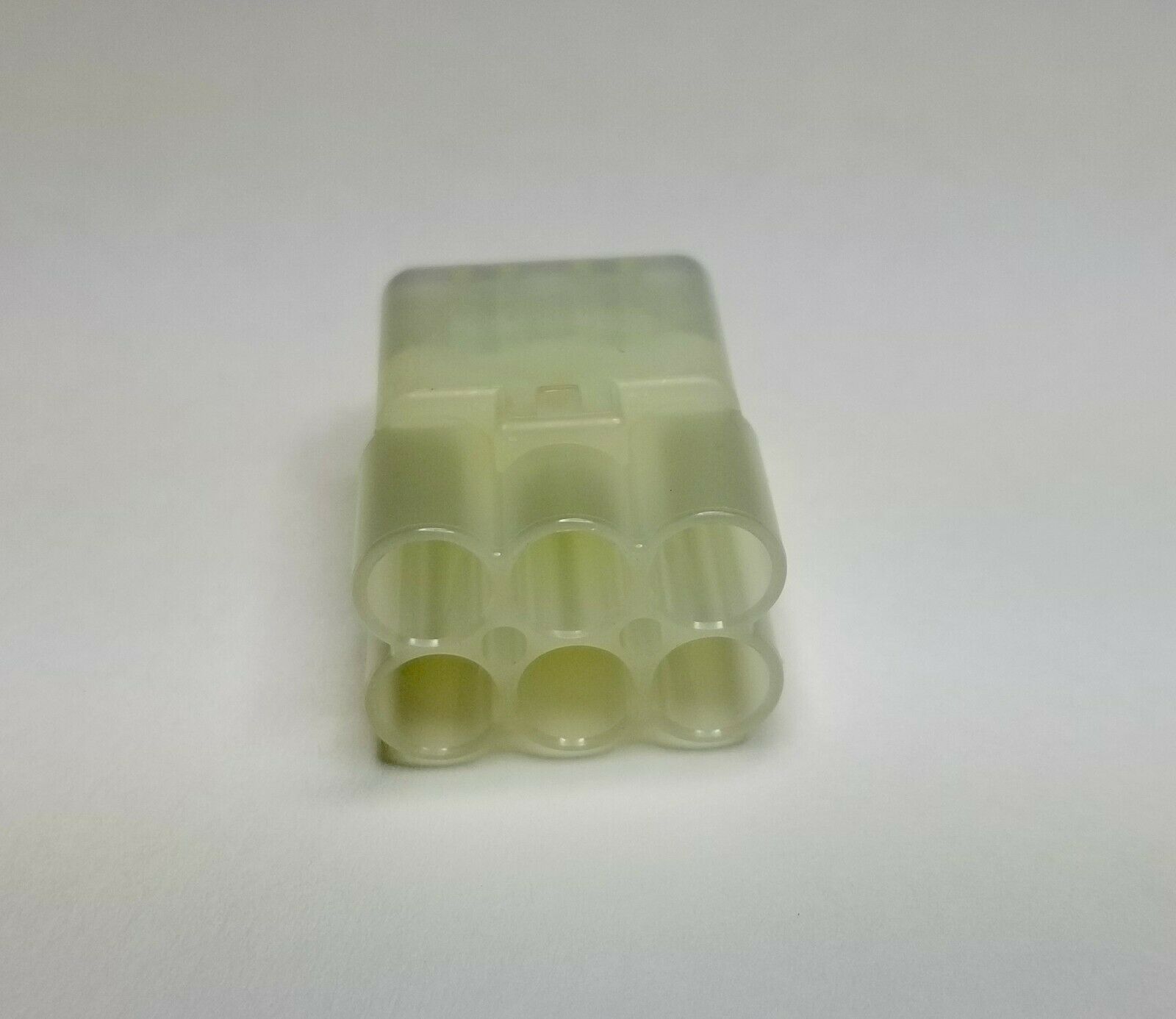

CLICK HERE FOR REMOTE START 6 PIN PLUG KIT FOR THE NEW EU7000ISNAG
AND
------------------------------------------------------------------------------------------------------
NEXT JUST BUY THE READY MADE HONDA HARD WIRED REMOTE KIT
NEW VERSIONS OF THE EU7000IS GENS
CLICK HERE FOR THE OEM NEW 30M KIT BOX ASSY. HONDA
POWER EQUIPMENT EU7000ISN SERIAL NUMBERS : AT1/A - EEJD 1200001-1299999 REMOTE
CONTROL BOX
, REMOTE CONTROL (30M) *NH105* (MAT BLACK)
32380-Z37-820ZA COST $437.00 PLUS SHIPPING. MAKE SURE TO USE THE DISCOUNT
CODE AT THE BOTTOM OF THIS PAGE FOR 15% OFF!
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
CLICK HERE FOR
MORE HERE SOON!
